Voltage: 24V/36V
Power: 50(1±10%)W

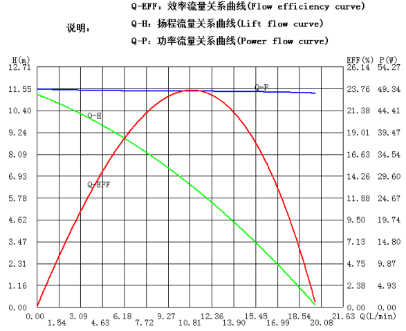

Flow: 20±1L/min;19.5±1L/min
Lift: 11±1m, 12±1m
Ambient temperature: -25~60℃
Medium temperature: 0~85℃
Noise: ≦45dB@1m
IP rating: IP68
Lifespan:>20000H
Protective function:
Stalled rotor protection, overvoltage protection, overcurrent protection, idling protection, anti-reverse connection protection, overtemperature protection
Features:
Adopting brushless motor structure, long life and reliable performance
Optimized motor cogging torque, superior quiet performance
High pressure resistant design, ultimate pressure bearing 3.5MP
application:
Special pumps for zero cold water gas water heaters, wall-mounted boiler water heaters, air energy water heaters and other water heaters
